主要特点
Single Supply Voltage and High Speed
Minimum operating voltage down to 1.7V
1 MHz clock from 2.5V to 5.5V
400kHz clock from 1.7V to 2.5V
Low power CMOS technology
Read current 500uA, maximum
Write current 2.5mA, maximum
Schmitt Trigger, Filtered Inputs for Noise Suppression
Sequential & Random Read Features
256 byte Page Write Modes, Partial Page WritesAllowed Write protect of the whole memory array
Additional Write Lockable Page
Self-timed Write Cycle (5ms maximum)
High Reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
HBM: 6KV
Latch up Capability: +/-200mA

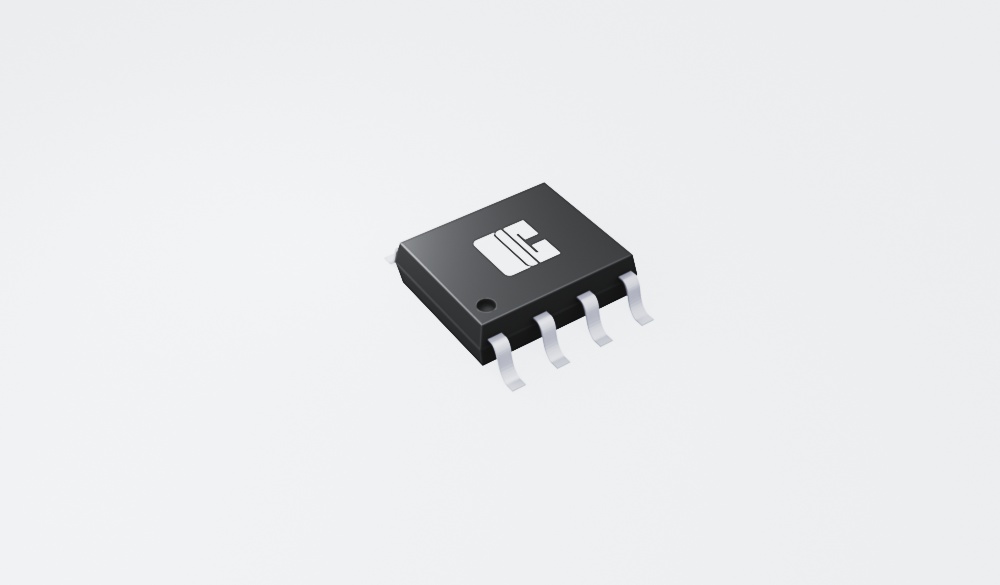

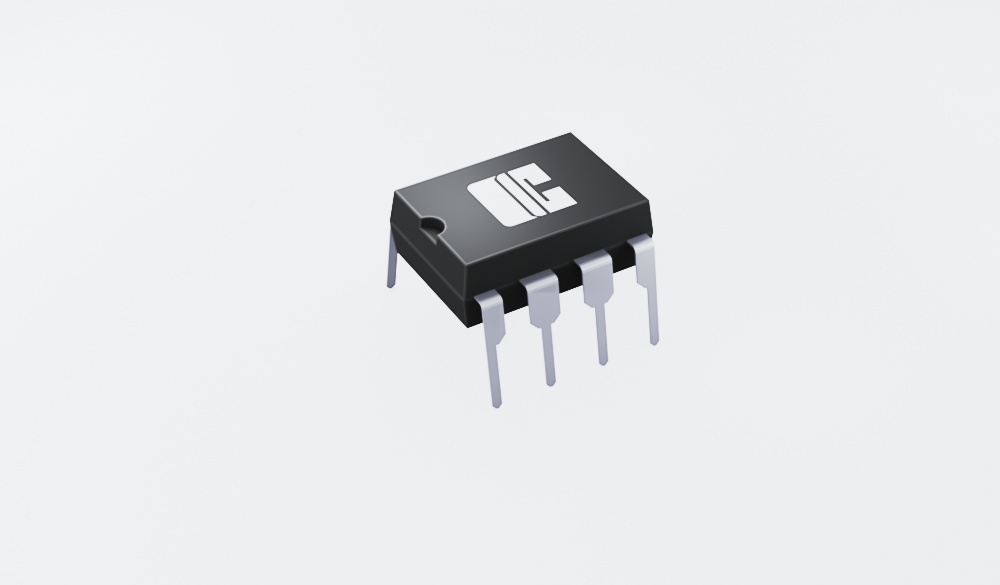

Package: DIP8, SOP8
